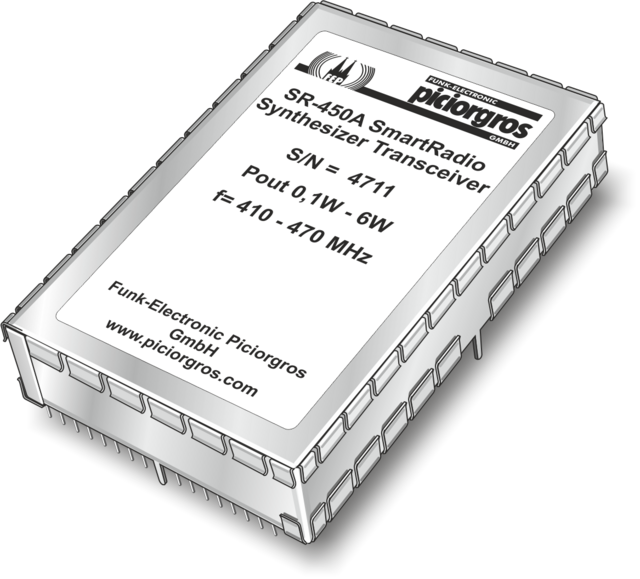

SR-450 UHF High Power
UHF Radio Module High Power
UHF radio module in the 70 cm band with audio input and output and a serial interface to the module controller.
The device is approved for operation in the USA on registrable frequencies (FCC-ID: TO9-SR450).
Data SR-450 H
| Function: | RF-unit wit NF input / output |
| Frequency Range: | 410 - 470 MHz |
| Coverage: | 20 MHz w/o readjusting |
| Channel Spacing: | 12,5 / 25 KHz |
| RF Output Power: | Programmable 0,1 W to 6W |
| Sensitivity: | -117 dBm |
| Data Rate: | 9600 / 19.200 BPS |
| Interfaces: | I2C, RS-232(TTL) |
| RSSI: | Analog Voltage at Terminal, and internal Register |
| Supply Voltage: | 5 Volt (9 Volt) |
| Current Consumption: | 110 mA - standby / receive 2,5 A @ Pout = 6 W (typical) |
| Antenna Connector: | SMR-nano |
| I/O Signals: | 17 Pin PCB-Terminal |
| Enclosure: | approx. 54 x 79 x 19 mm, Tinplate |
| Approval: | CE, EN 300 220 |
